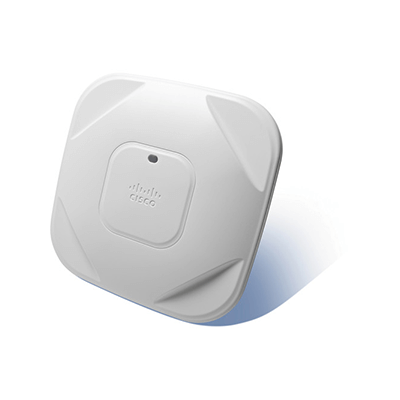

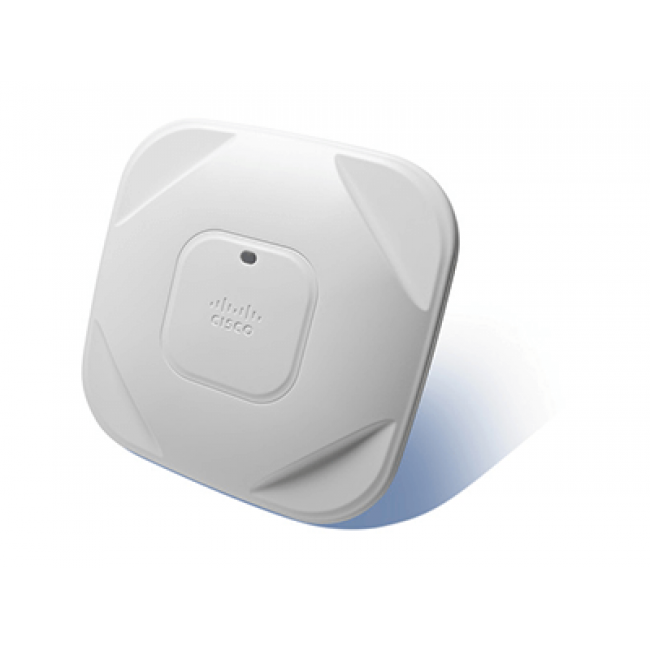

Точка доступа Cisco AIR-CAP1602E-H-K9 (AIR-CAP1602E-H-K9)

Точка доступа Cisco AIR-CAP1602E-H-K9
Cisco Производитель: Cisco
Смотреть все модели
31 081 р.
Быстрый заказ
Наличие: уточняйте
Минимальный заказ: 10 000 руб.

Минимальный заказ: 10 000 руб.

Тендеры

Принимаем участие и помогаем нашим клиентам выигрывать тендеры и поставлять требуемую продукцию!

Гарантия

На всё сетевое и серверное оборудование предоставляется гарантия до 3-х лет, в том числе на снятые с производства позиции.

Описание Точка доступа Cisco AIR-CAP1602E-H-K9

Точка доступа Cisco AIR-CAP1602E-H-K9
#technical2 li{margin-left: 2em;}

Технические характеристики

802.11n3 x 3 Multiple-Input Multiple-Output (MIMO) with two spatial streams
Maximal Ratio Combining (MRC)
20 and 40 MHz channels
PHY data rates up to 300 Mb/s
Packet Aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS) (Bin 5)
Cyclic Shift Diversity (CSD) support
Frequency Band and 20 MHz Operating ChannelsA Regulatory Domain:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.320 GHz, 8 channels
5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)
5.745 to 5.825 GHz, 5 channels
Maximum Total Transmit Power2.4 GHz: 802.11b/802.11g/802.11n (HT20)
22 dBm (3 antennas enabled)

5 GHz: 802.11a
22 dBm (3 antennas enabled)
802.11n non-HT duplicate mode
5 GHz: 802.11n (HT20) and (HT40)
22 dBm (3 antennas enabled) tvdtcfxbefverrrtsbcvvbtrduxf
The maximum power setting will vary by channel and according to individual country regulations.
Available Total Transmit Power Settings2.4 GHz and 5 GHz
Enabled Antennas: 1
17/14/11/8/5/2 dBm
Enabled Antennas: 2
20/17/14/11/8/5 dBm Enabled Antennas: 2
22/19/16/13/10/7 dBm The maximum power setting will vary by channel and according to individual country regulations.
Integrated Antenna2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360°
5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
External AntennasCertified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Cisco offers 802.11n antennas delivering optimal coverage for a variety of deployment scenarios (sold separately)
Interfaces10/100/1000BASE-T autosensing (RJ-45)
Management console port (RJ-45)
System Memory256 MB DRAM
32 MB flash
Power RequirementsInput: AP1600: 44 to 57 VDC
Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 Hz
Powering Options802.3af Ethernet switch
Cisco AP1600 power injectors (AIR-PWRINJ4, AIR-PWRINJ5)
Cisco AP1600 local power supply (AIR-PWR-B)
Power DrawAP1600: 12.95 W When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.
SoftwareCisco Unified Wireless Network Software
Cisco IOS Software Release
IndicatorsStatus LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
EnvironmentalOperating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -22 to 158°F / -30 to 70°C
Operating Humidity: 10 to 90% non-condensing
Operating Altitude: 104°F / -40°C; 9,843 ft / 3,000 m
Non-Operating Altitude: -13°F / -25°C 15,000 ft / 4,572 m
ComplianceSafety: UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
Radio Approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
IEEE Standard:
IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d
Security:
802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
802.1X
Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
EAP Types:
Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
PEAPv1 or AP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
Multimedia
Wi-Fi Multimedia (WMM)
Others
FCC Bulletin OET-65C
RSS-102
Dimensions (L x W x H)8.7 x 8.7 x 1.8" (22.1 x 22.1 x 4.7 cm)
Weight1.9 lb (0.9 kg)
