Модуль Cisco Catalyst WS-X6516-GBIC (WS-X6516-GBIC)

Модуль Cisco Catalyst WS-X6516-GBIC
Cisco Производитель: Cisco
Смотреть все модели
0 р.
Быстрый заказ
Наличие: уточняйте
Минимальный заказ: 10 000 руб.

Минимальный заказ: 10 000 руб.

Тендеры

Принимаем участие и помогаем нашим клиентам выигрывать тендеры и поставлять требуемую продукцию!

Гарантия

На всё сетевое и серверное оборудование предоставляется гарантия до 3-х лет, в том числе на снятые с производства позиции.

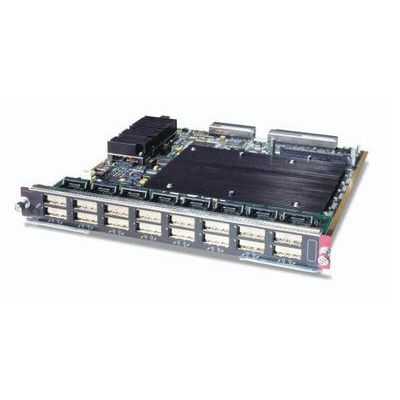

Описание Модуль Cisco Catalyst WS-X6516-GBIC

Модуль Cisco Catalyst WS-X6516-GBIC обладает шестнадцатью портами GBIC, работающих на скорости 1GE full-duplex, в которые могут быть установлены оптические модули 1000BASE-SX, LX/LH, ZX, GBIC под медный носитель, или GBIC CWDM, в любой комбинации.

Основные особенности:
  • Порты: 16x 1000BASE-X (GBIC)
  • Подключение к шине: Switch Fabric
  • Форвардинг: Centralized (возможен апгрейд до Distributed с помошью установки дочерней карты WS-F6K-DFC)
  • Очерёдность на порт: 3 transmit, 2 receive


Технические характеристики

Ports per module•16 ports. Ports are numbered (left to right):
–Top row, odd numbered ports 1-15.
–Bottom row, even numbered ports 2-16.
•2 port groups
•Port ranges per port group: 1-8, 9-16
Port connector typeSC or RJ-45 depending on the type of GBIC transceiver installed in the module port
Cabling distance
Depends on the GBIC transceiver installed in the module port. Refer to Appendix B for descriptions of the GBIC transceiver types and supported cabling distances.
Speed1 Gbps
Buffer size•512 KB per port—WS-X6516-GBIC
•1 MB per port—WS-X6516A-GBIC
QoS•Number of egress queues: 3
•Number of ingress queues: 2
•Number of thresholds per egress queue: 2
•Number of thresholds per ingress queue: 4
Maximum frame sizeUp to 9216 bytes per frame (both modules)
Module oversubscription rate2:1
Supervisor engine supportSupported on the following supervisor engines:
•Supervisor Engine 2
•Supervisor Engine 32
•Supervisor Engine 32 PISA
•Supervisor Engine 720
•Supervisor Engine 720-10GE
Software support•With Supervisor Engine 2—12.1(18a)E, WS-X6516-GBIC; 12.1(19)E1, WS-X6516A-GBIC
•With Supervisor Engine 32—12.2(18)SXF
•With Supervisor Engine 32 PISA—12.2(18)ZY
•With Supervisor Engine 720—12.2(14)SX
•With Supervisor Engine 720-10GE—12.2(33)SXH
Queues per portBoth modules:
•Tx—1p2q2t
•Rx—1p1q4t
Chassis/slot restrictionsNo chassis or slot restrictions; the module can occupy any slot in any Catalyst 6500 or Catalyst 6500-E chassis.

Bus connection		32-Gbps shared bus
Module upgrades available
PoE supportNot supported.
Distributed forwarding supportCan be field-upgraded with either the WS-F6K-DFC, WS-F6K-DFC3B, or WS-F6K-DFC3BXL daughter cards.
Refer to the Catalyst 6500 Series DFC, DFC3A, DFC3B, and DFC3BXL Installation Note for additional information and field upgrade procedures.
Pluggable transceivers supportGBIC transceivers are supported. Refer to your software release notes to determine which GBIC transceivers are supported. See the "1-GB Transceivers" section in Appendix B for additional information on the GBIC transceivers.
Digital Optical Monitoring (DOM) supportSupported on some GBIC transceivers.
Note Refer to your software release notes for specific information on which GBIC transceivers support DOM and the software release required for support.
Module front panel LEDsSTATUS
•Green—All diagnostics pass; the module is operational.
•Orange—The module is booting or running diagnostics; an overtemperature condition has occurred.
LINK
•Green—The port is active (the link is connected and operational).
•Flashing orange—The port failed diagnostics and is disabled.
•Orange—The port is disabled.
•Red—The module is resetting; an overtemperature condition has occurred.
Note If the module fails to download code and configuration information successfully during the initial reset, the LED stays red; the module does not come online.
•Off—The port is not active or the link is not connected.
