Модуль Cisco Catalyst WS-X6148-RJ45 (WS-X6148-RJ45)
0 р.
Быстрый заказ
Наличие: уточняйте
Минимальный заказ: 10 000 руб.
Минимальный заказ: 10 000 руб.
Тендеры
Принимаем участие и помогаем нашим клиентам выигрывать тендеры и поставлять требуемую продукцию!
Гарантия
На всё сетевое и серверное оборудование предоставляется гарантия до 3-х лет, в том числе на снятые с производства позиции.

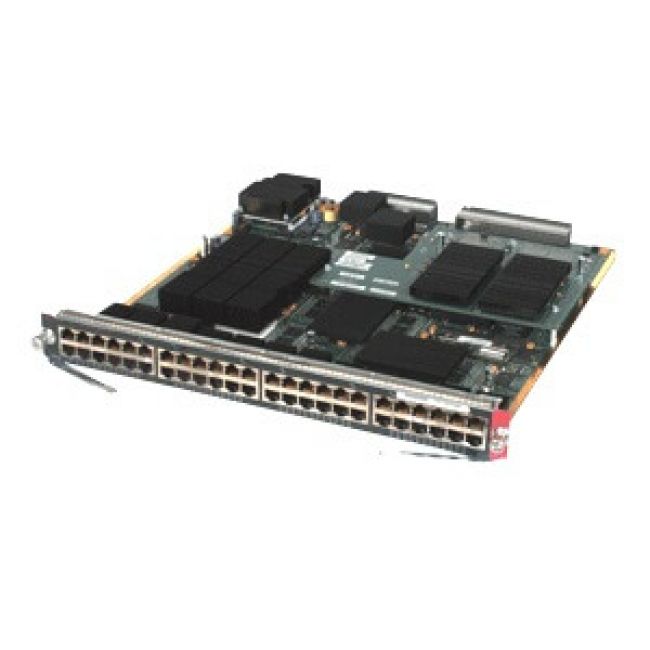

Описание Модуль Cisco Catalyst WS-X6148-RJ45
Модуль для Cisco Catalyst 6500 Series, 48 портов 10/100BaseTX, поддержка IEEE 802.3af PoE (Power of Ethernet) вместе с модулем WS-F6K-FE48-AF.
Технические характеристики
| Manufacturer: | Cisco |
| Product ID: | WS-X6148-RJ45V |
| Product Description: | Catalyst 6500 48-port 10/100 Inline Power, RJ-45 |
| Product Type: | Switching Module |
| Application/Usage: | Switching Network |
| Interfaces/Ports: | 48 x 10/100Base-TX LAN |
| Interfaces/Ports Details: | 48 x RJ-45 Female 10/100Base-TX LAN |
| Connectivity Media: | Category 3 UTP |
| Category 5 UTP | |
| Category 5e UTP | |
| Category 6 UTP | |
| 100 ohm STP | |
| Distance Supported: | Category 5 UTP Full-duplex |
| 328 ft Category 5e UTP Full-duplex | |
| 328 ft Category 6 UTP Full-duplex | |
| 328 ft 100 ohm STP Full-duplex | |
| Data Transfer Rate: | 10 Mbps Ethernet Half/Full-duplex |
| 100 Mbps Fast Ethernet Half/Full-duplex | |
| Management: | Network Management: · ETHERLIKE-MIB (RFC 1643) · IF-MIB (RFC 1573) · Bridge MIB (RFC 1493) · CISCO-STACK-MIB · CISCO-VTP-MIB · CISCO-CDP-MIB · RMON MIB (RFC 1757) · CISCO-PAGP-MIB · CISCO-STP-Extensions-MIB · CISCO-VLAN-Bridge-MIB · CISCO-VLAN-Membership-MIB · CISCO-UDLDP-MIB · CISCO-ENTITY-FRU-CONTROL-MIB · CISCO-COPS-CLIENT-MIB · ENTITY-MIB (RFC 2037) · HC-RMON · RFC1213-MIB (MIB-II) · SMON-MIB |
| Protocols: | TCP/IP |
| STP | |
| Memory: | Buffer Memory Per Port Installed |
| Status Indicators: | · Status · Link good |
| Temperature: | to Operating |
| -40°F (-40°C) to 167°F (75°C) Storage | |
| Humidity: | 10% to 90% Non-condensing Relative Humidity |
| Altitude: | to Operating |
| Dimensions: | 1.2" Height x 14.4" Width x 16.0" Depth |
| Additional Information: | · Includes Cisco Inline Power daughter card; upgradable to 802.3af · Interface Module Class: Classic · Primary Applications: Base Wiring Closet · Scheduler: Weighted Round Robin (WRR) · Phone discovery: Automatically detects the presence of an IP phone and supplies inline power to the phone · Auxiliary VLANs: Provides automatic VLAN configuration for IP phones using IEEE 802.1Q as the standards-based VLAN tagging mechanism between the switch and the IP phone · The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t · Fabric Connections: Connection to 32 Gbps shared bus (all Supervisors) · Forwarding Engine Architecture: Centralized CEF engine located on supervisor's PFCx makes forwarding decision · Maximum Frame Size (Jumbo Frame) Support: up to 9216 bytes · Optional DFC Upgrade Requirements: not supported · Optional AFC Upgrade Requirements: not supported Inline Power Specifications: · Output power per port: 48V DC power · Pin assignment: 1, 2, 3, 6 Maximum Port Density / Chassis: · Cisco Catalyst 6513: up to 576 ports · Cisco Catalyst 6509: up to 384 ports |
| System Requirements: | Slot Requirements: · Any slot in any chassis |
| Compatibility: | · Cisco Catalyst 6500 Series Supervisor Engine Supported: · Supervisor Engine 1A · Supervisor Engine 2 · Supervisor Engine 720 |
| Certifications & Standards: | Standard Network Protocols: · Ethernet: IEEE 802.3, 10BASE-T · Fast Ethernet: IEEE 802.3, 100BASE-TX, and 100BASE-FX · IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad Safety Compliance: · UL 1950 · CSA-C22.2 No. 950 · EN 60950 · IEC 950 · AS/NZS 3260 · IEC 825 · EN 60825 · 21CFR1040 EMC Compliance: · FCC Part 15 (CFR 47) Class A · VCCI Class A with UTP, Class B with STP · EN55022 Class A with UTP, Class B with STP · CISPR 22 Class A with UTP, Class B with STP · CE marking · AS/NZS 3548 Class A with UTP, Class B with STP |
