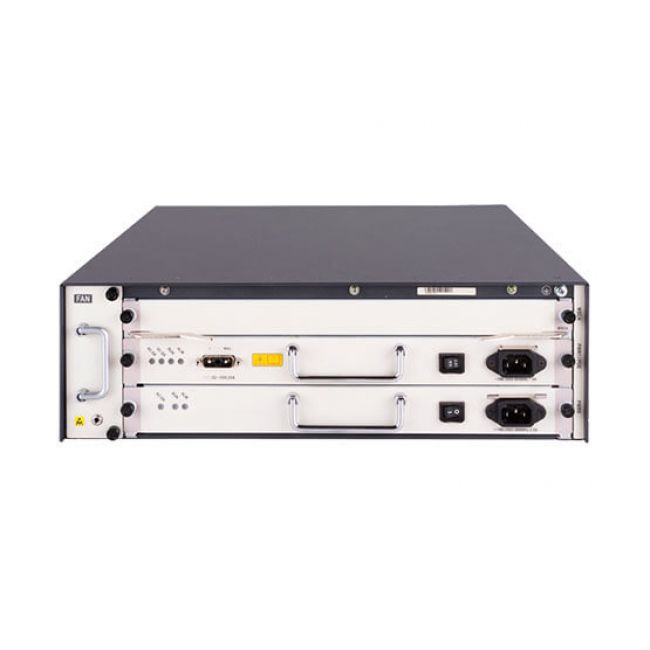

Маршрутизатор Huawei RT-AR4945-AC-OVS, 0235A21F (RT-AR4945-AC-OVS)

Маршрутизатор Huawei RT-AR4945-AC-OVS, 0235A21F
Huawei Производитель: Huawei
85 205 р.
Наличие: уточняйте
Минимальный заказ: 5000 руб.

Минимальный заказ: 5000 руб.

Тендеры

Принимаем участие и помогаем нашим клиентам выигрывать тендеры и поставлять требуемую продукцию!

Гарантия

На всё сетевое и серверное оборудование предоставляется гарантия до 3-х лет, в том числе на снятые с производства позиции.

Описание Маршрутизатор Huawei RT-AR4945-AC-OVS, 0235A21F


Маршрутизатор Huawei RT-AR4945-AC-OVS 0235A21F


Технические характеристики:

AAALocal authentication Radius HWTacacs
AC input voltage100 to 240 VAC
Auxiliary port1
CF (default/maximum)256MB/1GB
Congestion avoidanceWRED/RED
Congestion managementFIFO, PQ, CQ, WFQ, CBQ and RTPQ
Console port1
Data securityIKE IPSec Encryption card
Dimensions436.2mm-424mm-130.7mm
EMCETSI EN 300 386 V1.3.1 (2001-09) EN 55022(1998) EN 55024 (1998) FCC Part15 ICES-003 VCCI V-3 AZ/NZS CISPR22 CNS 13438
ESM slot2
FIC slot4
FirewallASPF ACL FILTER
Fixed USB(USB1.1) ports2
Frequency50/60 Hz
Hardware encryptionSupport ( SNDE/ANDE )
IP applicationPing and Trace DHCP Server DHCP Relay DHCP Client DNS client DNS Static NQA IP Accounting UDP Helper NTP Telnet TFTP Client FTP Client FTP Server
IP Forwarding Performance600Kpps
IP routeStatic routing management Dynamic routing protocols RIP/RIPng OSPF OSPFv3 BGP IS-IS Multicast routing protocols IGMP PIM-DM PIM-SM MBGP MSDP Routing policy
IP servicesFast forwarding (unicast/multicast) TCP UDP IP Option IP unnumbered Policy routing (unicast/multicast)
IPv6IPv6 basic functions IPv6 ND IPv6 PMTU IPv6 FIB IPv6 ACL IPv6 transition technologies NAT-PT IPv6 tunneling 6PE IPv6 routing IPv6 static routing management Dynamic routing protocols RIPng OSPFv3 IS-ISv6 BGP4+ Multicast routing protocols MLD PIM-DM PIM-SM PIM-SSM
LAN protocolARP (proxy ARP, free ARP) Ethernet_II Ethernet_SNAP VLAN (PORT-BASED VLAN/MAC-BASED VLAN/VLAN-BASED PORT ISOLATE /VOICE VLAN) 802.3x LACP(802.3ad) 802.1p / 802.1Q / 802.1x RSTP(802.1w) MSTP(802.1s) IGMP Snooping GVRP PORT LOOPBACK PORT MUTILCAST suppression
MaintainabilityNetwork management SNMP V1/V2c/V3 MIB SYSLOG RMON Local management Command line management File system management auto-config Dual Image User access management Supports console interface login Supports AUX interface login Supports TTY interface login Supports telnet (VTY) login Supports SSH login Supports FTP login Supports X25 PAD login
Memory capacity (default/maximum)512MB/1G (DDR)
MPLSLDP LSPM MPLS TE MPLS FW MPLS/BGP VPN L2VPN
Number of Fixed Ethernet ports2 GE Combo
Operating humidity5-90% (non-condensing)
Operating temperature32 to 104°F (0 to 40°C)
Other security technologiesL2TP NAT/NAPT PKI RSA SSH V1.5/2.0 SSL URPF GRE
Output Power(Maximum)350W
Port securityPPPoE Client & Server 802.1x
QoSSP WRED(Port) CAR LR Flow-base QOS Policy Port-Based Mirroring Flow-Based Mirroring Cos-Based HOLB(Head of Line Blocking)Prevention Packet Remarking Flow Redirect Flow Accounting Priority Mapping Port Trust Mode Port Priority Flow Filter Flow Control & Backpressure ACL
ReliabilitySupports VRRP Supports the backup center
Security specificationUL 60950 3rd Edition CSA 22.2#950 3rd Edition 1995 EN 60950: 2000 + ZB & ZC deviations for European Union LVD Directive IEC 60950:1999 + corr. Feb. 2000, modified + all National deviations
SIC/DSIC slot4 SIC slots 2DSIC slots 2SIC+1DSIC slots
Traffic shapingSupports GTS (Generic Traffic Shaping)
Traffic supervisionSupports CAR (Committed Access Rate) Supports LR (Line Rate)
VoiceInterfaces FXS FXO E&M E1 Signaling R2 DSS1 Q.sig Digital E&M H.323 H.225 H.245 GK Client SIP Codec G.711A law G.711U law G.723R53 G.723R63 G.729a G.729R8 Media Process RTP/cRTP IPHC Voice Backup FAX Other Voice RADIUS VoFR PSTN BACKUP Multi country tone
VPM slot4
WAN protocolsPPP and MP PPPoE Client, and PPPoE Server PPP/MP over FR FR and MFR FR Fragment, FR Compress, and FR over IP FRTS ATM (IPoA, IPoEoA, PPPoA and PPPoEoA) DCC and Dialer Watch HDLC LAPB X25, X25 over TCP and X25 to TCP X25 PAD, X25 Huntgroup and X25 CUG ISDN and ISDN Network ISDN QSIG MODEM
Weight18kg
85 205 р.
