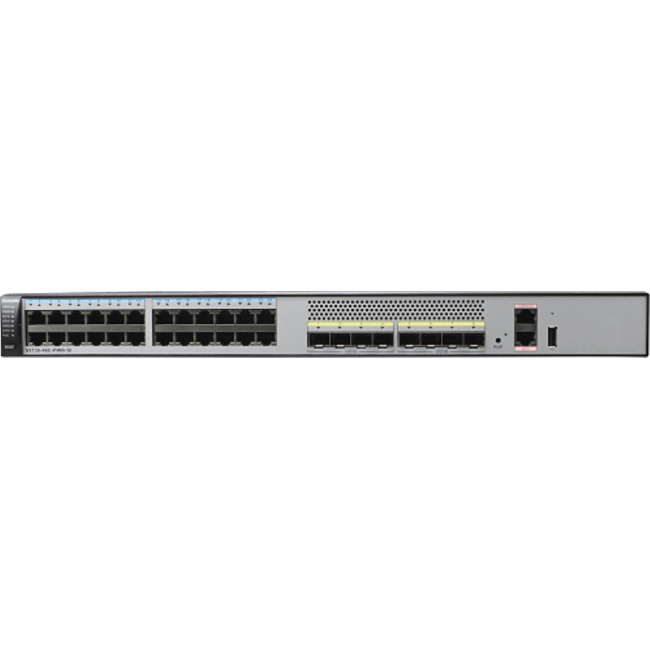

Коммутатор Huawei S5730-48C-PWR-SI-AC (S5730-48C-PWR-SI-AC)

Коммутатор Huawei S5730-48C-PWR-SI-AC
24 Ethernet 10/100/1,000 ports, 8 x 10 Gig SFP+
One interface slot
One 500W AC power supply equipped by default
PoE+
Forwarding performance: 240 Mpps
Switching capacity: 680 Gbit/s
Fixed Ports 24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+
MAC Address Table 32K MAC
Dimensions (W x D x H) 442 mm x 420 mm x 44.4 mm
Slot One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
Input Voltage
AC:
Rated AC voltage: 100V to 240V; 50/60 Hz
Max AC voltage: 90V to 264V; 47 Hz to 63 Hz
DC:
Rated DC power: -48V to -60V
Max DC voltage: -36V to -72V
Maximum Power Consumption
Without card and PD: 83. 2W
Without card and full PoE load: 967W (PoE: 740W)
Typical Power Consumption (without PD) Without card: 44.2W
